Ø35 DP Stab 20k Interv wCV WL BSP 1/4" 120° Cone


Article no. PA0198

Approval Status 9-IFU (Issued for Use)
Pressure Rating Bar 1380
Material Intervention
Weight 3.6 kg
Volume 0.54 dm3
Surface Area 1503 cm2
Hydraulic BSP 1/4" 120" Cone
Spare Part BA5286
Current Rev 07

Product PDF Download


The Ø35mm Blue Logic Hot Stab is made according to API 17D. This Hot Stab is in general designed for flow up to approx 25 liters pr. munute. We have pressure rating up to PSI 20K or 1380 Bar. The Hot Stab system can also be fitted with an lock-system.

Name Product no.
Ø35 DP Rec 10k Interv wCV BSP 1/2" ID8mm
BA1043
Yes
Available for rent
Ø35 DP Rec 20k Interv wCV MP 1/4''
BA2012
Yes
Ø35 DP Rec 10k Interv wCV WL BSP 1/2"
BA3257
No
Ø35 DP Rec 10k Long-term MP 3/8"
BA5903
No
Ø35 DP Rec 10k Interv wCV BSP 1/2'' for Stab Ejection
BA7572
No
Ø35 DP Rec 10k Parking
BA9227
No
Ø35 DP Park Rec Vented Long-term
BB5062
Yes
Ø35 DP Rec 10k w250W Inductive Connector
BB5863
No
Ø35 DP Rec 10k Interv BSP 1/2" ID8mm
PA0174
Yes
Available for rent
Ø35 DP Rec 20k Interv wCV WL MP 1/4"
PA0214
Yes
Ø35 DP Rec 20k Interv BSP 3/8"
PA0429
No
Name Product no.

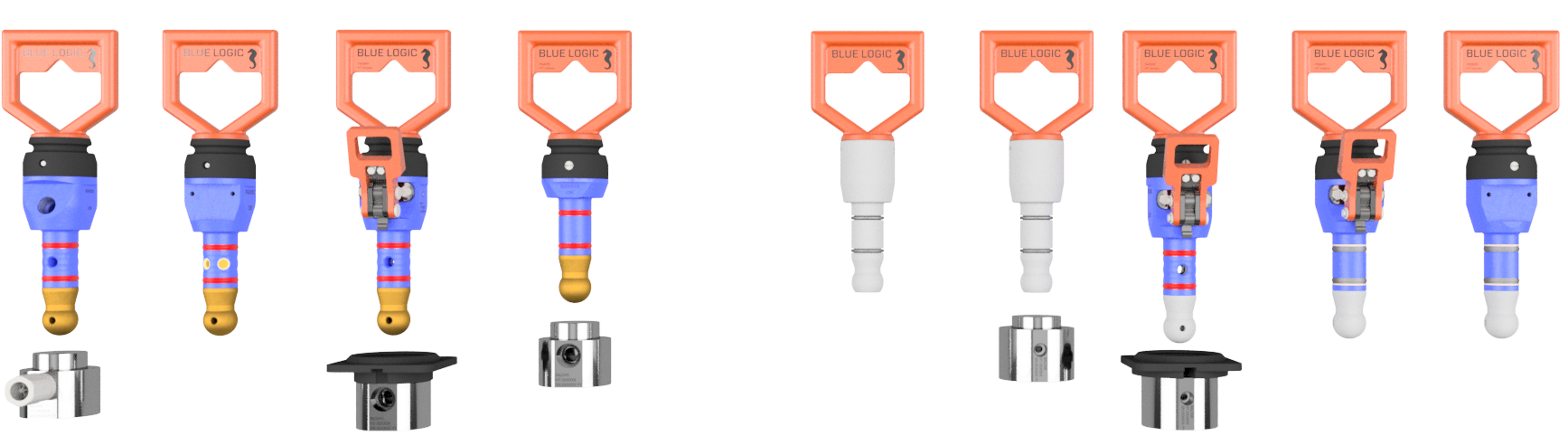

Ø35 SP Stab and Rec Overview
BB2081
No

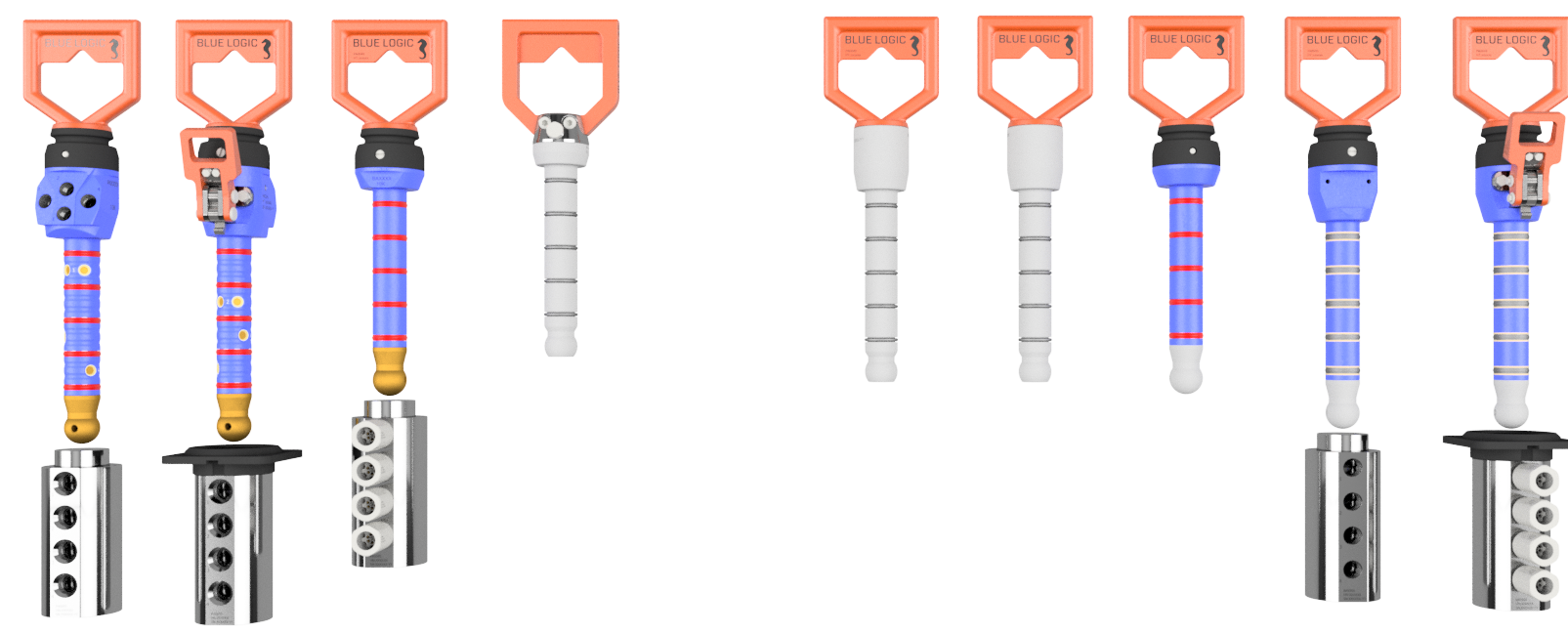

Ø35 QP Stab and Rec Overview
BB2082
No

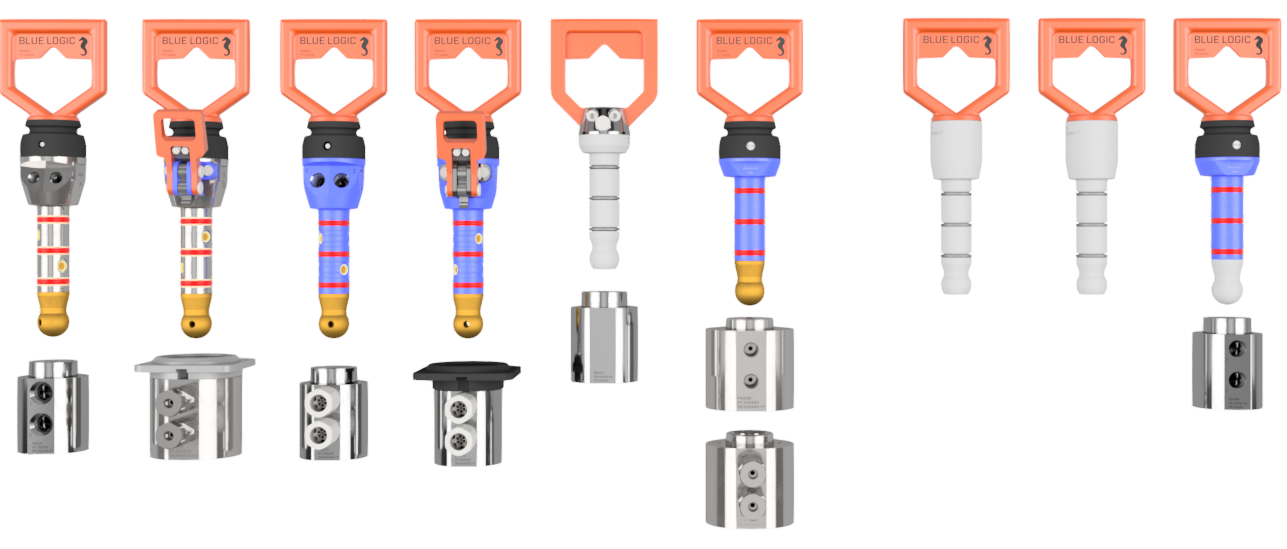

Ø35 DP Stab and Rec Overview
BB2085
No

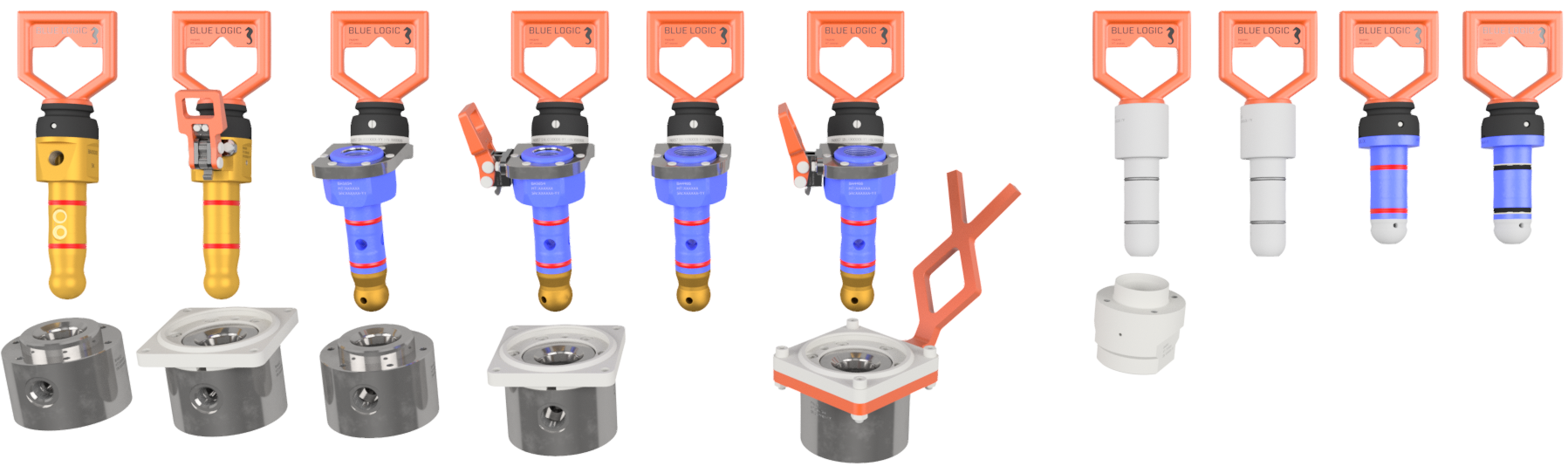

Ø43 SP Stab & Rec Overview
BB2089
No

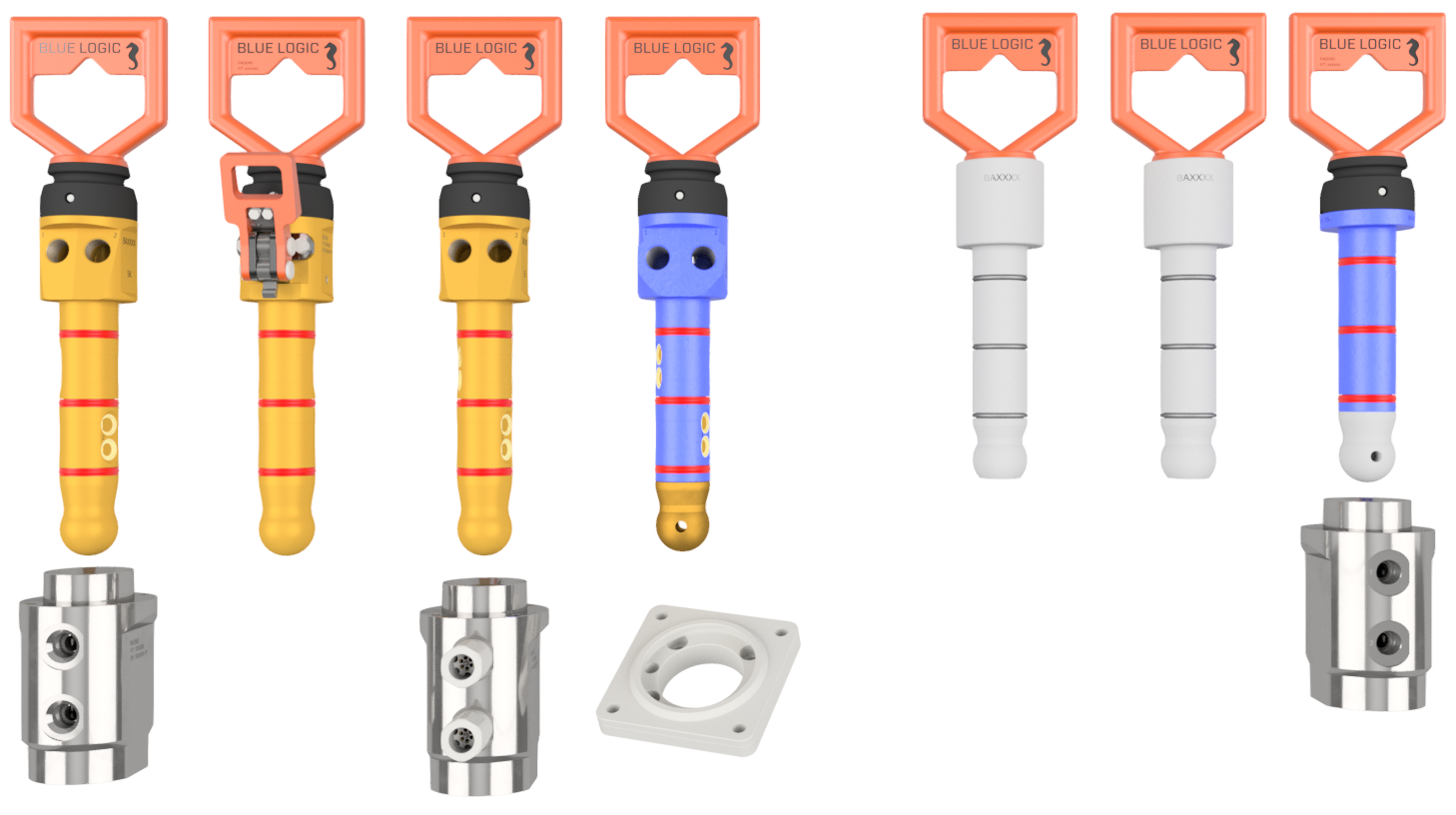

Ø43 DP Stab & Rec Overview
BB2090
No

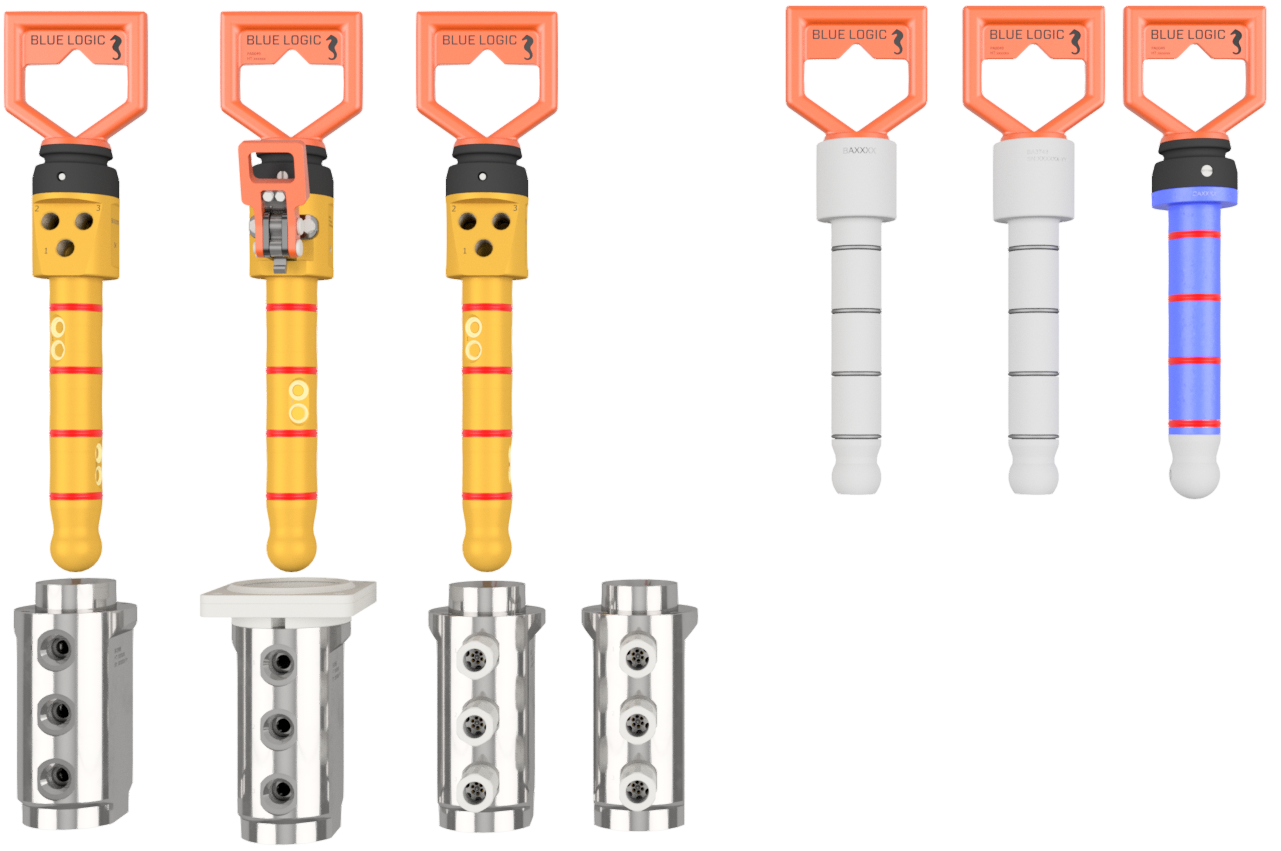

Ø43 TP Stab & Rec Overview
BB2092
No

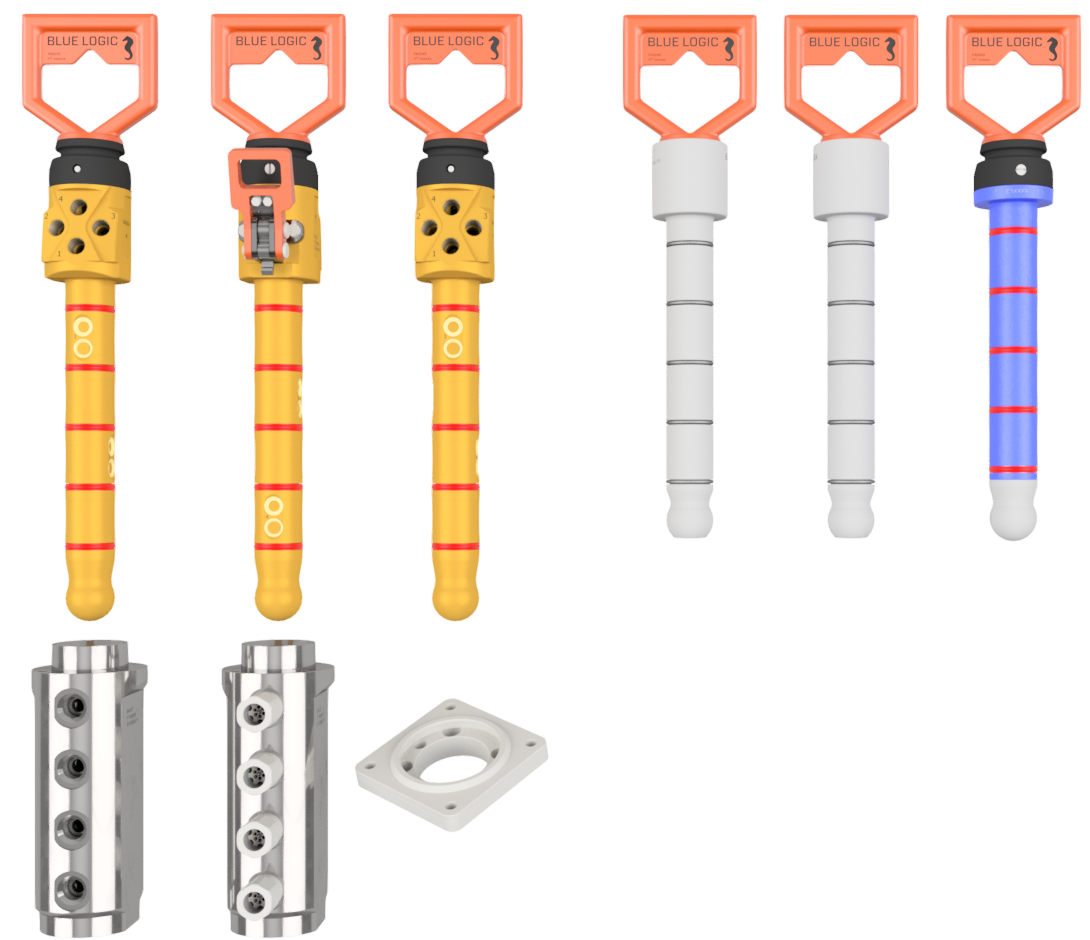

Ø43 QP Stab & Rec Overview
BB2093
No

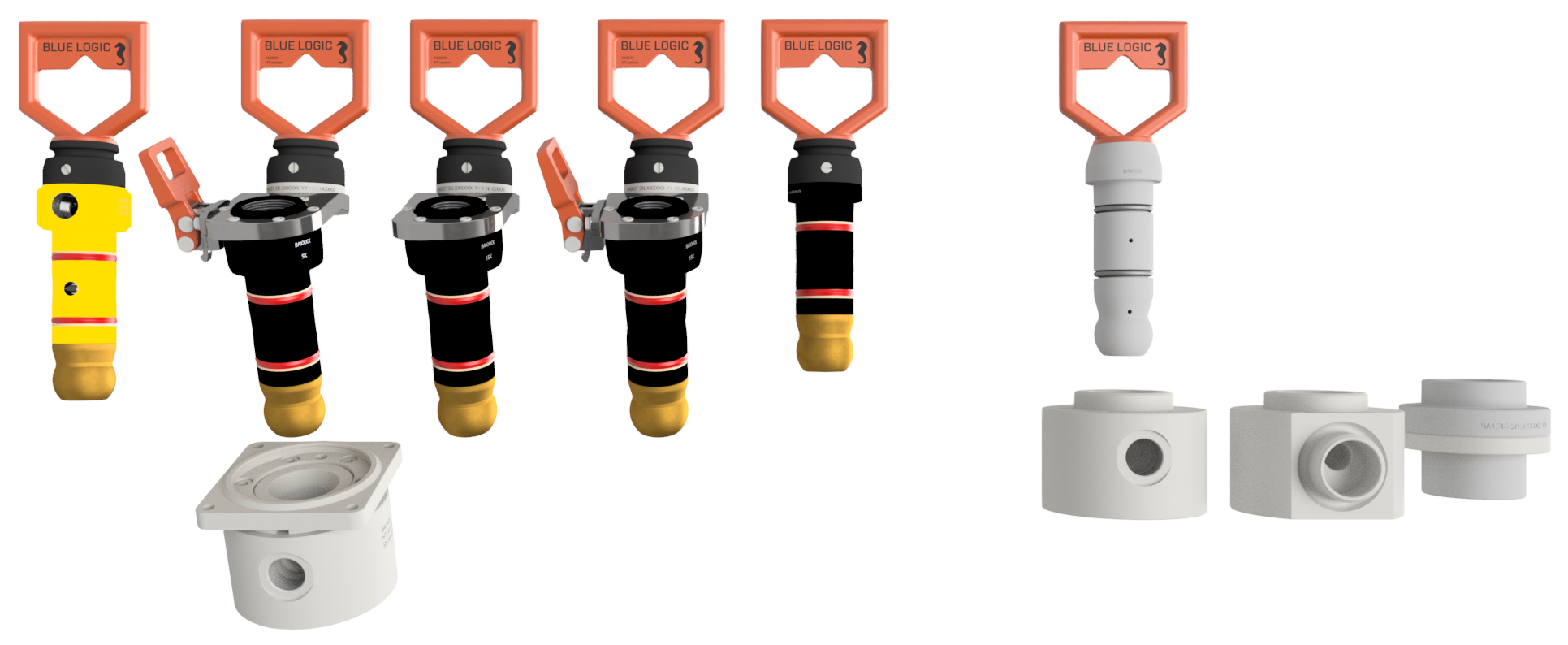

Ø55 SP Stab & Rec Overview
BB2095
No

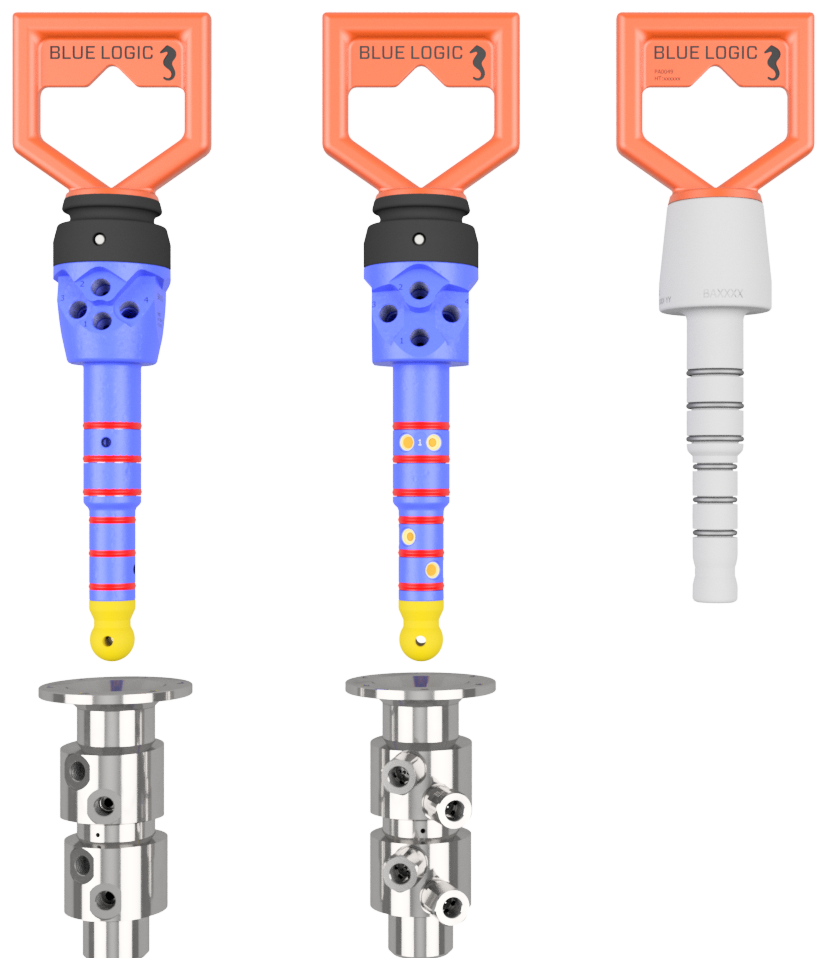

Ø28/35 Stab & Rec Overview
BB2096
No
