API 17H 3rd Edition Type 1 Ø43 - Hot stab Equipment

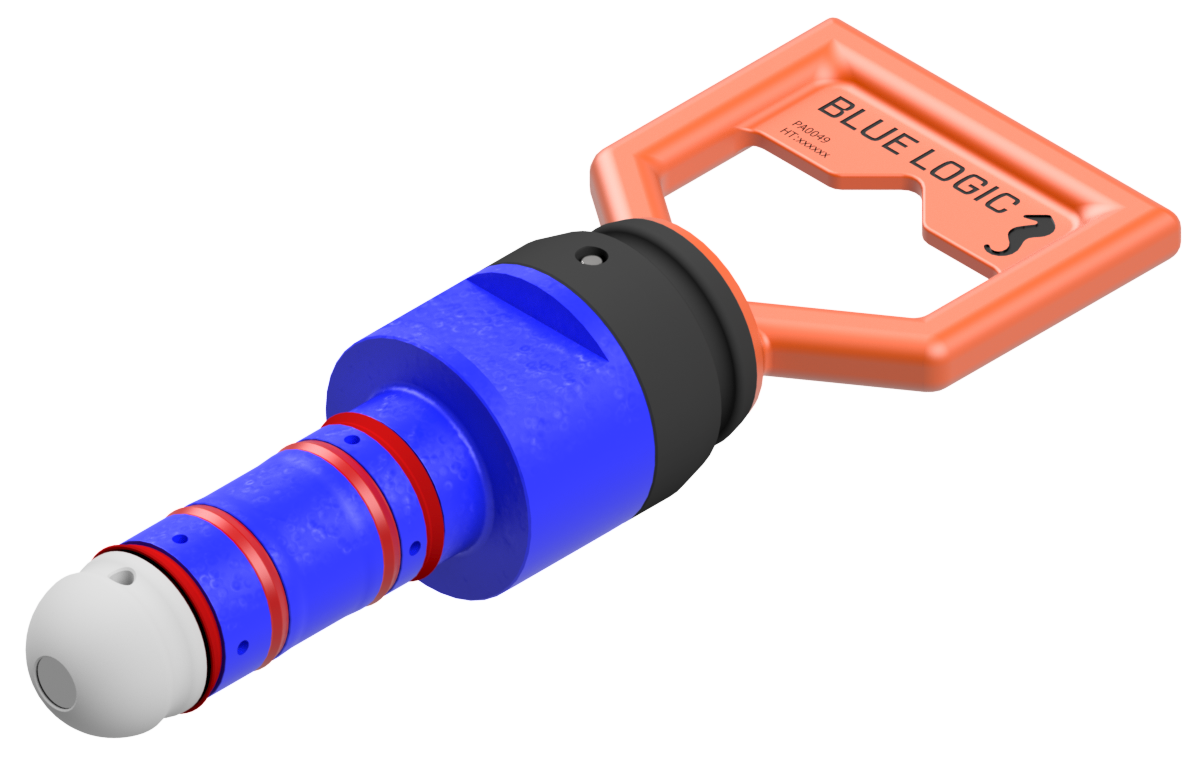

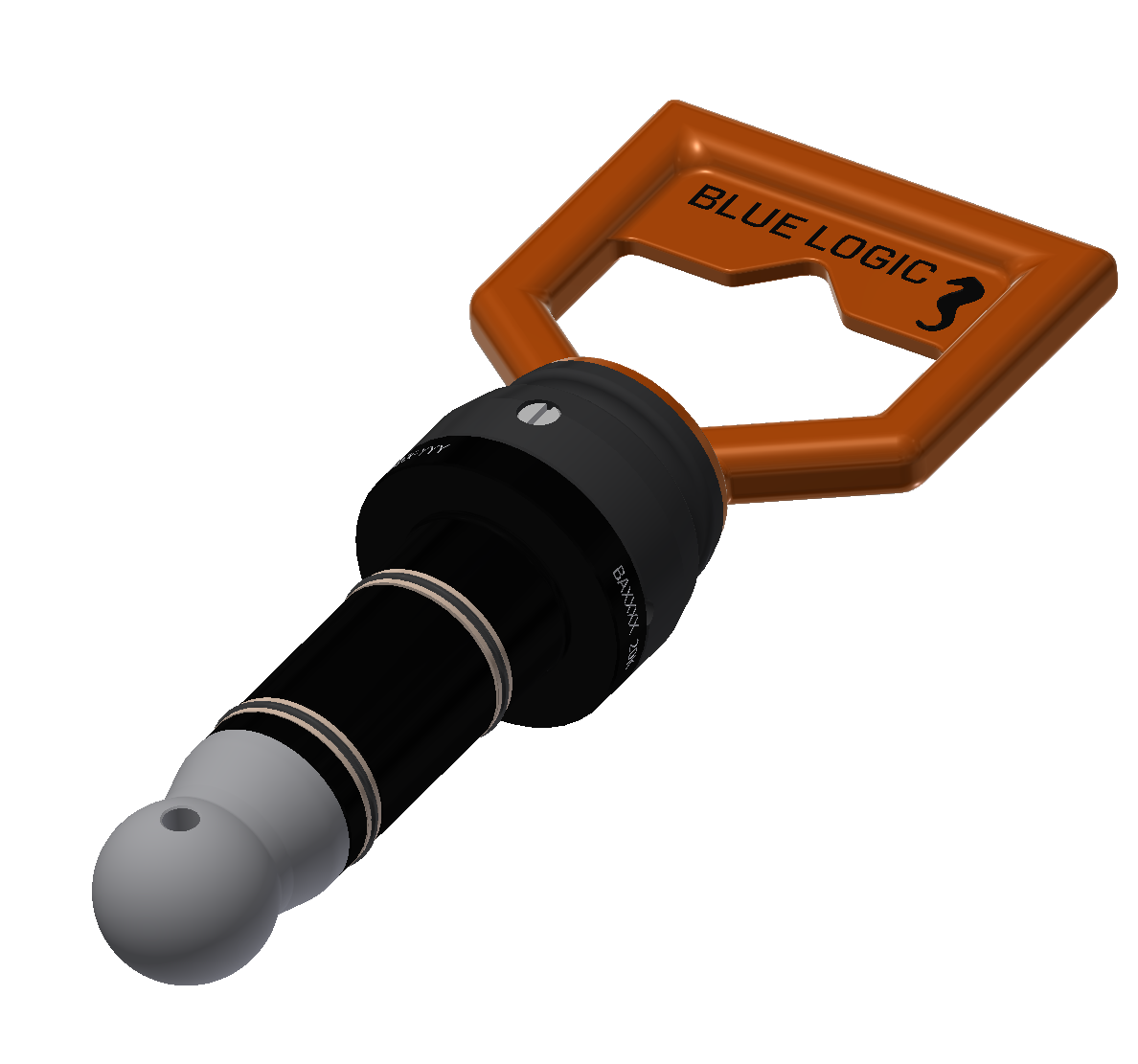

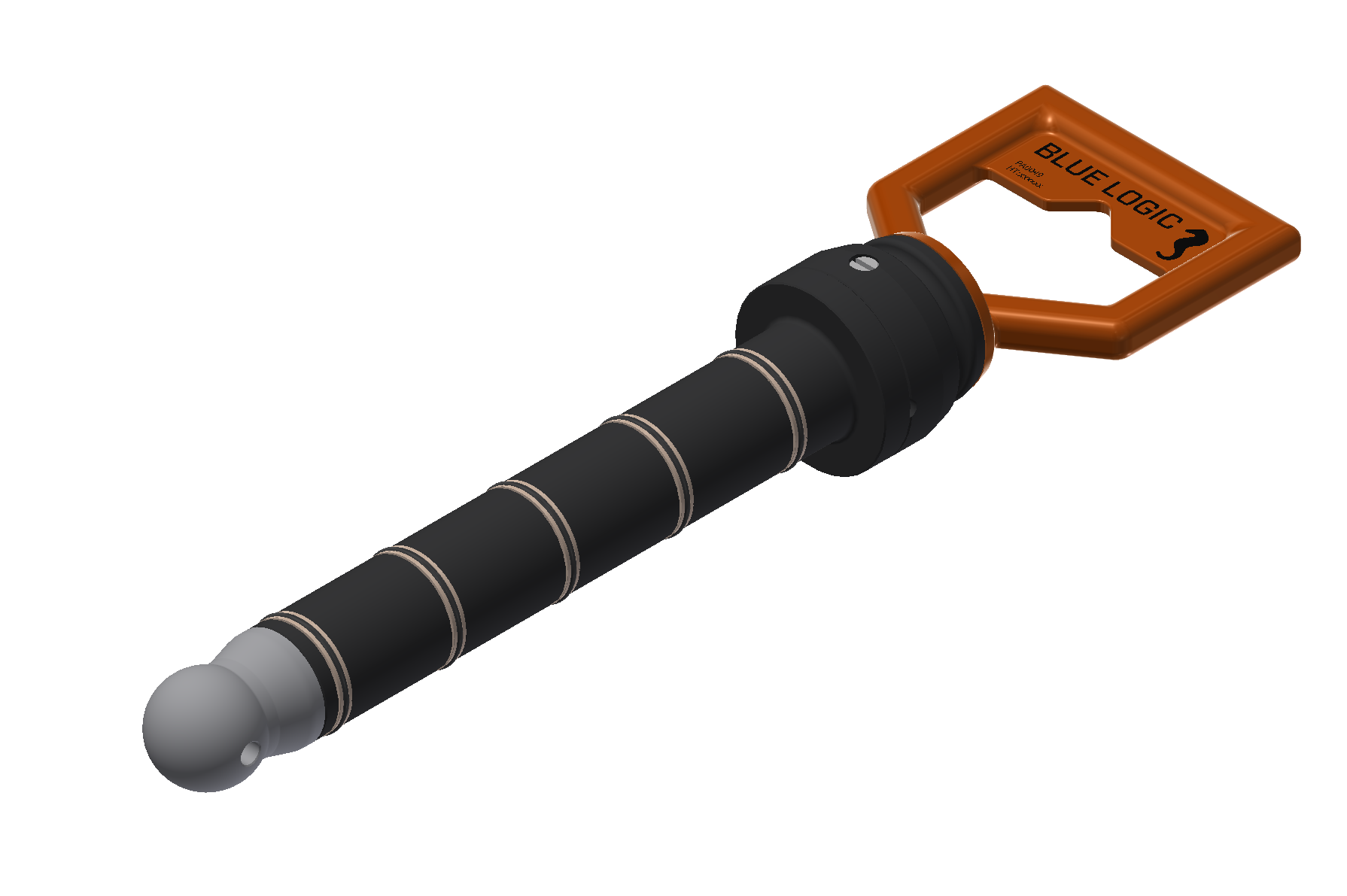

Blue Logics Ø43 Hot Stabs are designed according to API 17H 3rd Edition. Comes in various types/configurations for e.g. permanent use, ROV operations, with or without check valves.
Ø43 Hot Stabs comes in the following pressure ratings:
- 5000psi
- 10,000psi
- 20,000psi

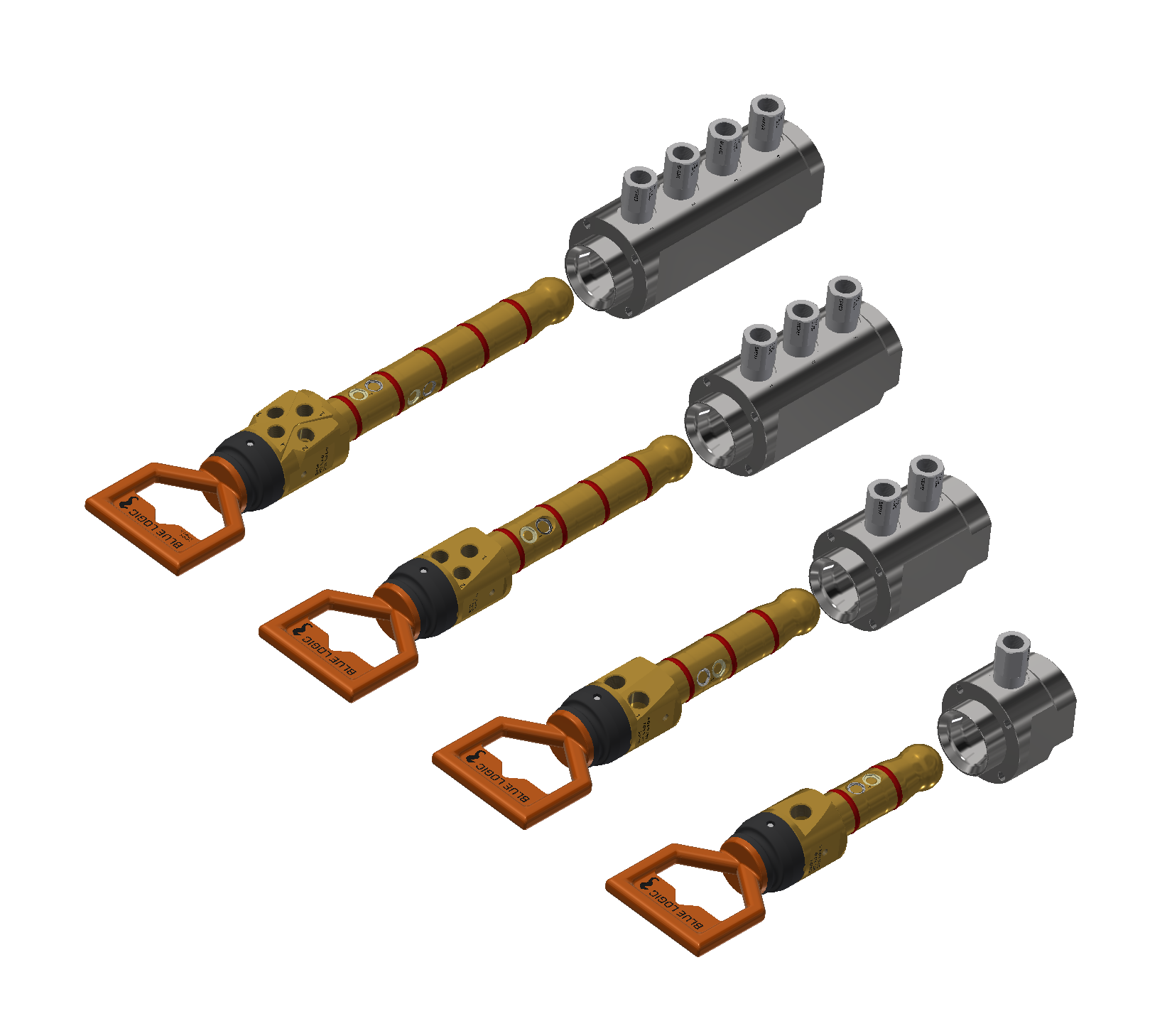

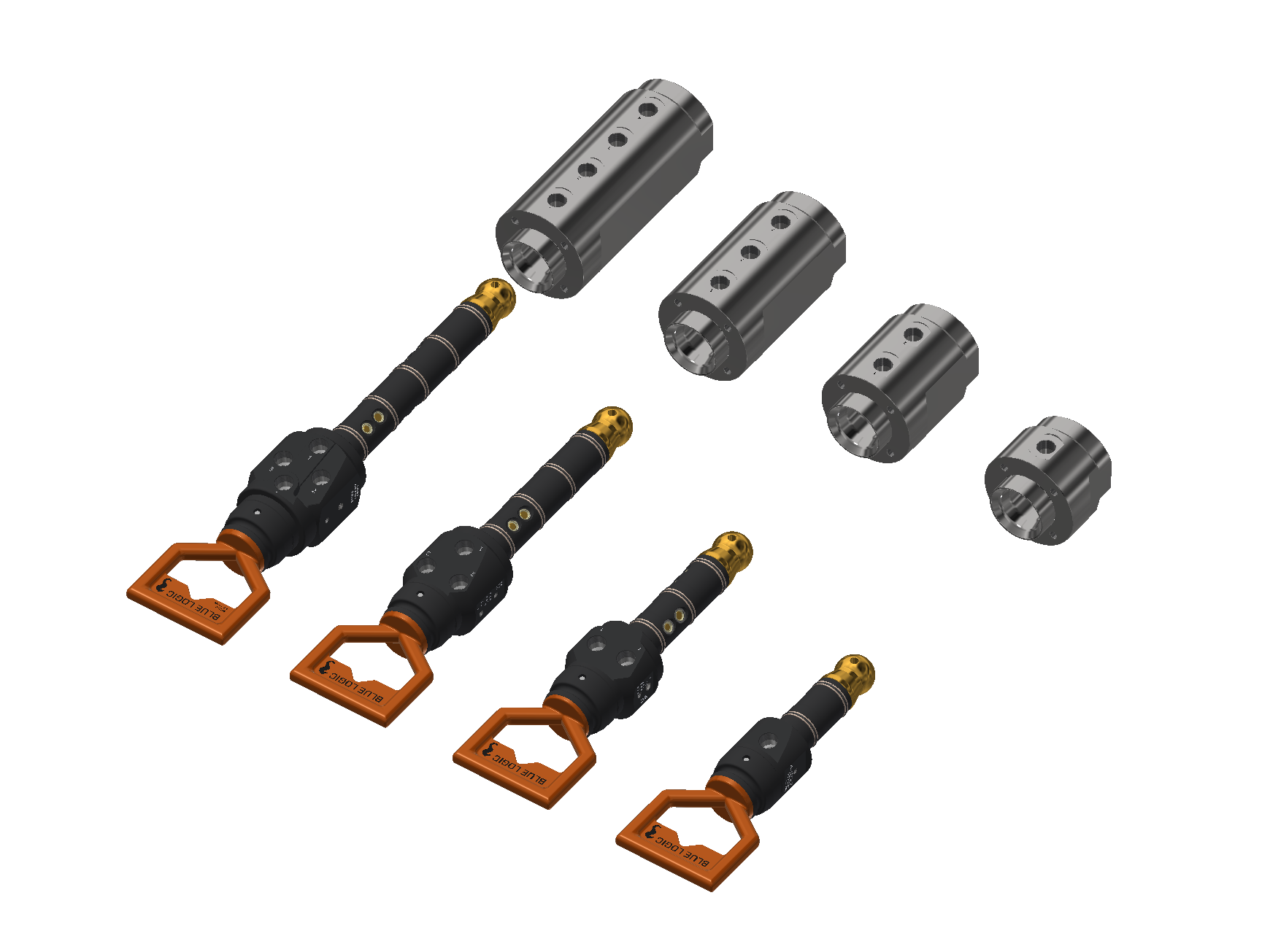

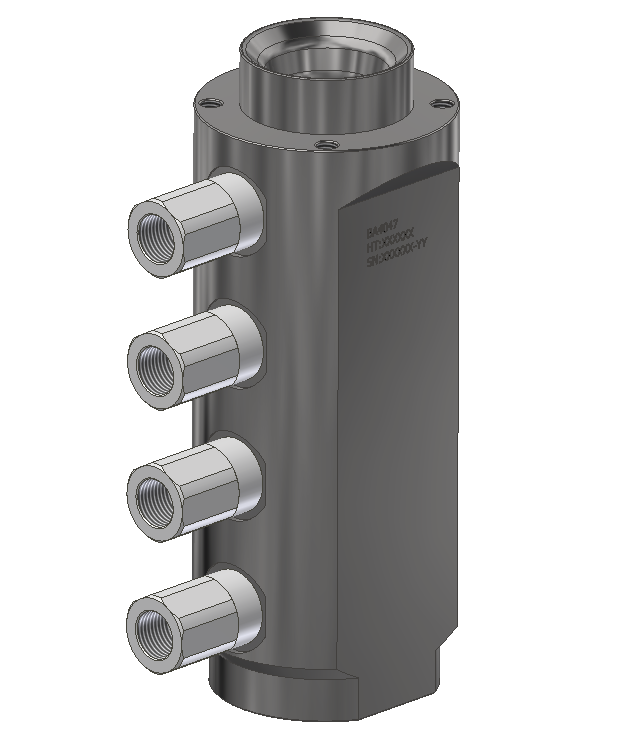

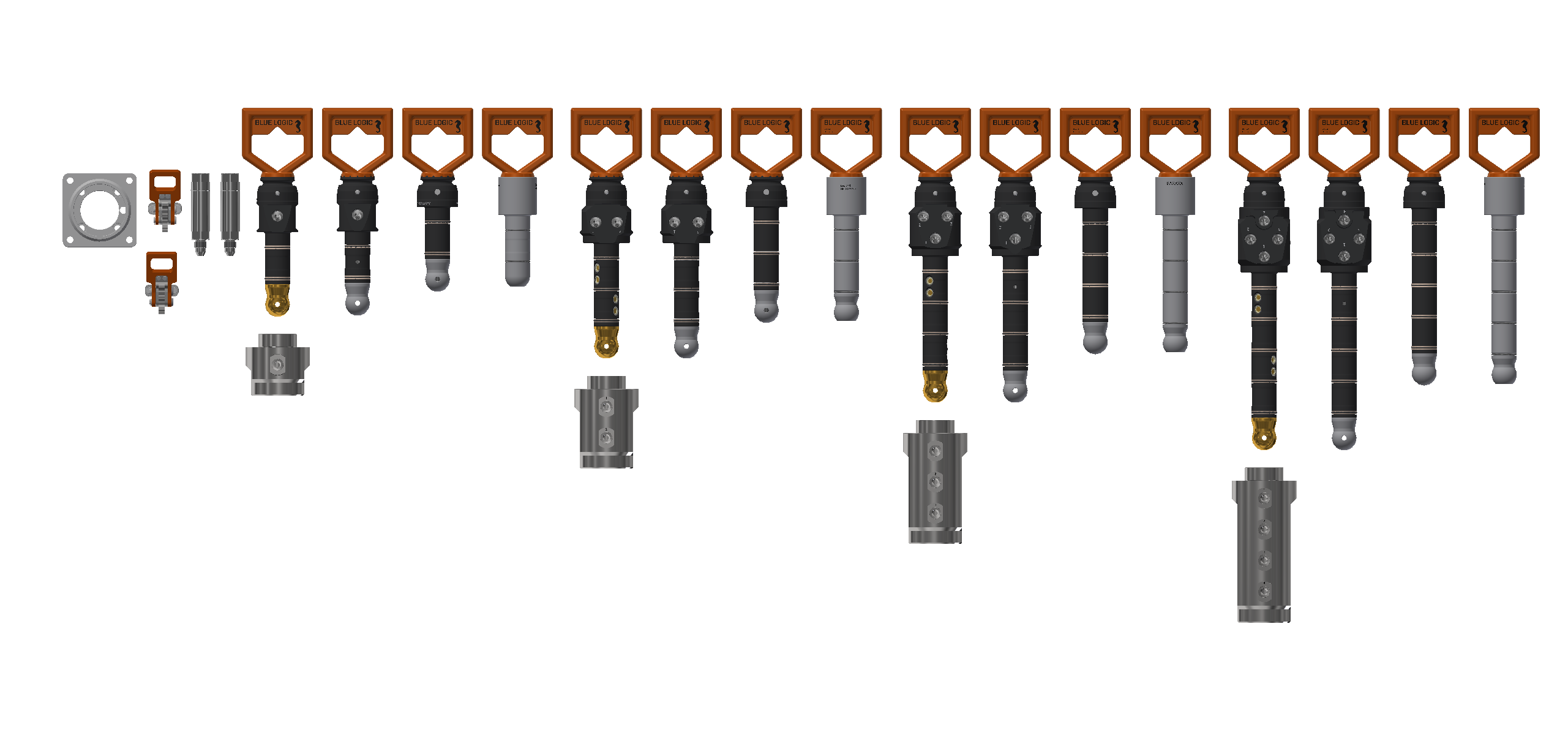

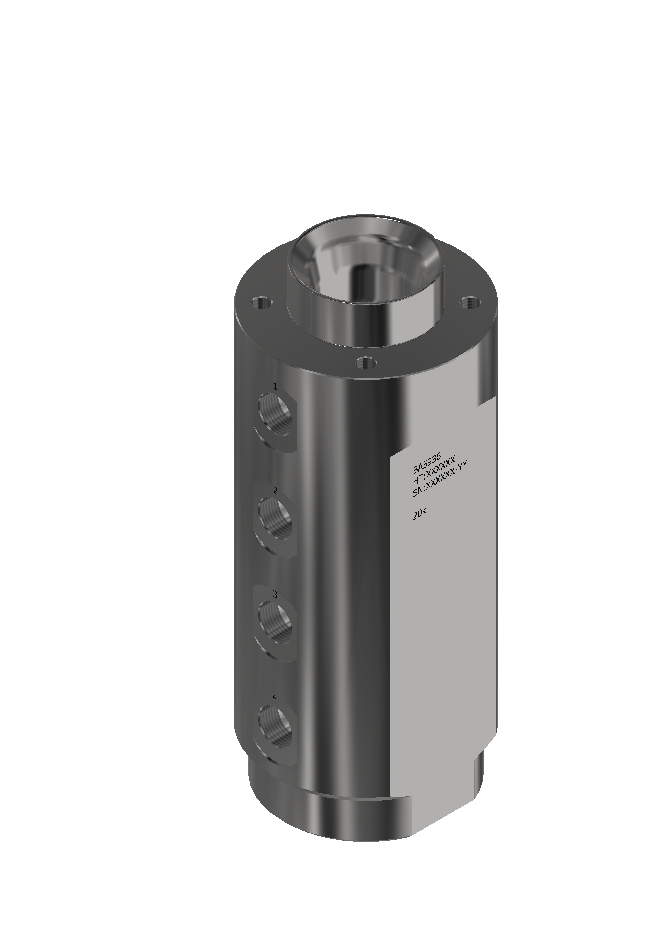

Available in Single Port, Dual Ports, Trippel Port and Quad Ports configurations.
Recommended max. flow for a Ø43 Hot Stab with check valves is 50 L/min.
Single Port High Flow version is also available.

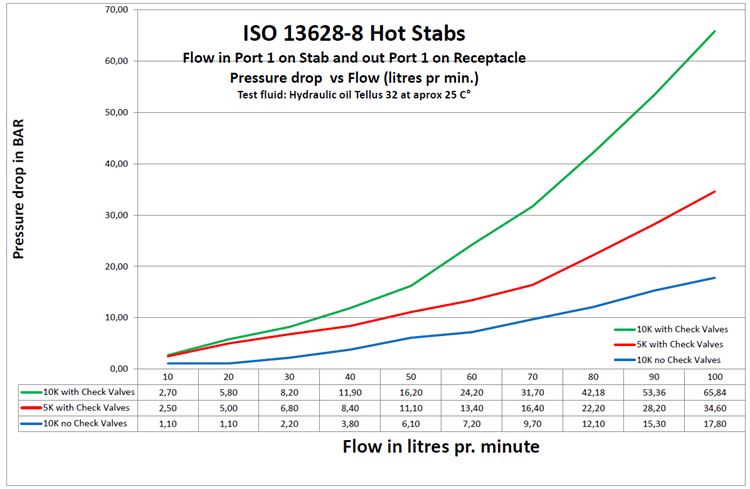

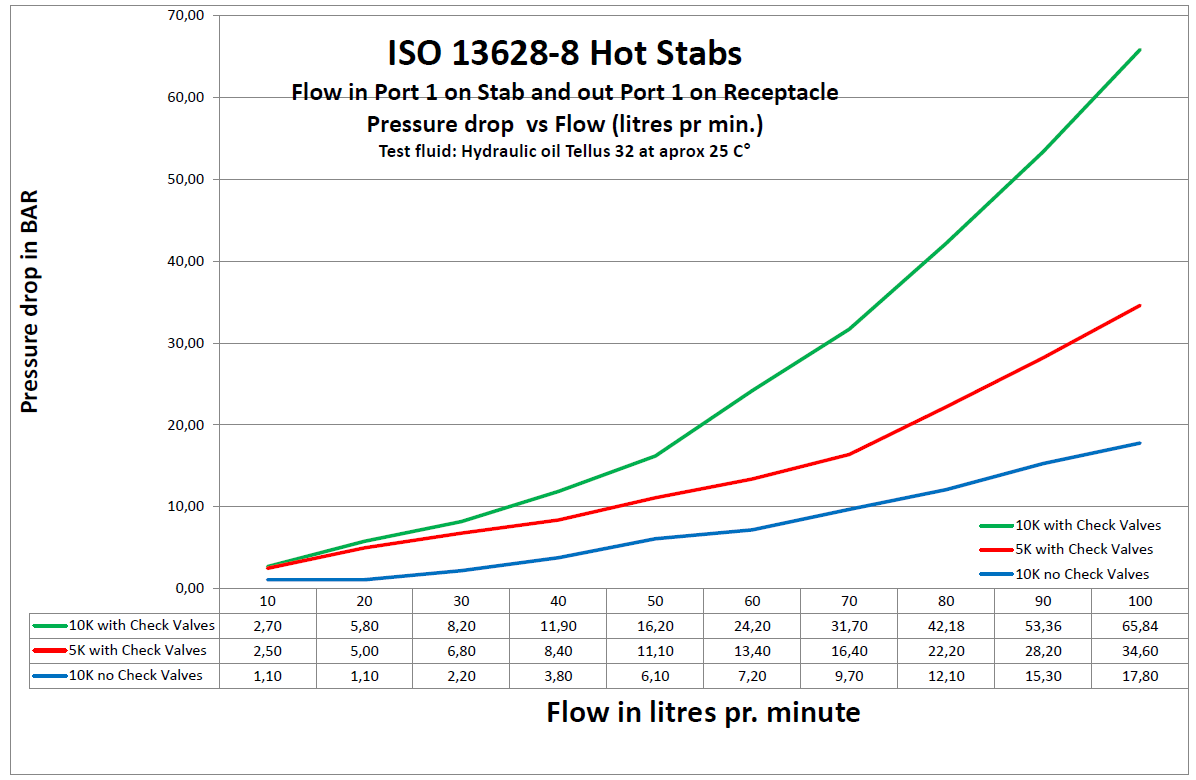

The below flow-curves are valid for Ø43 Hot Stabs with 5000Psi rating only. Stabs with 10 000 and 20 000Psi ratings use the same check valves as the Ø35 Hot Stabs, please see Ø35 Hot Stabs for representative flow curves.
