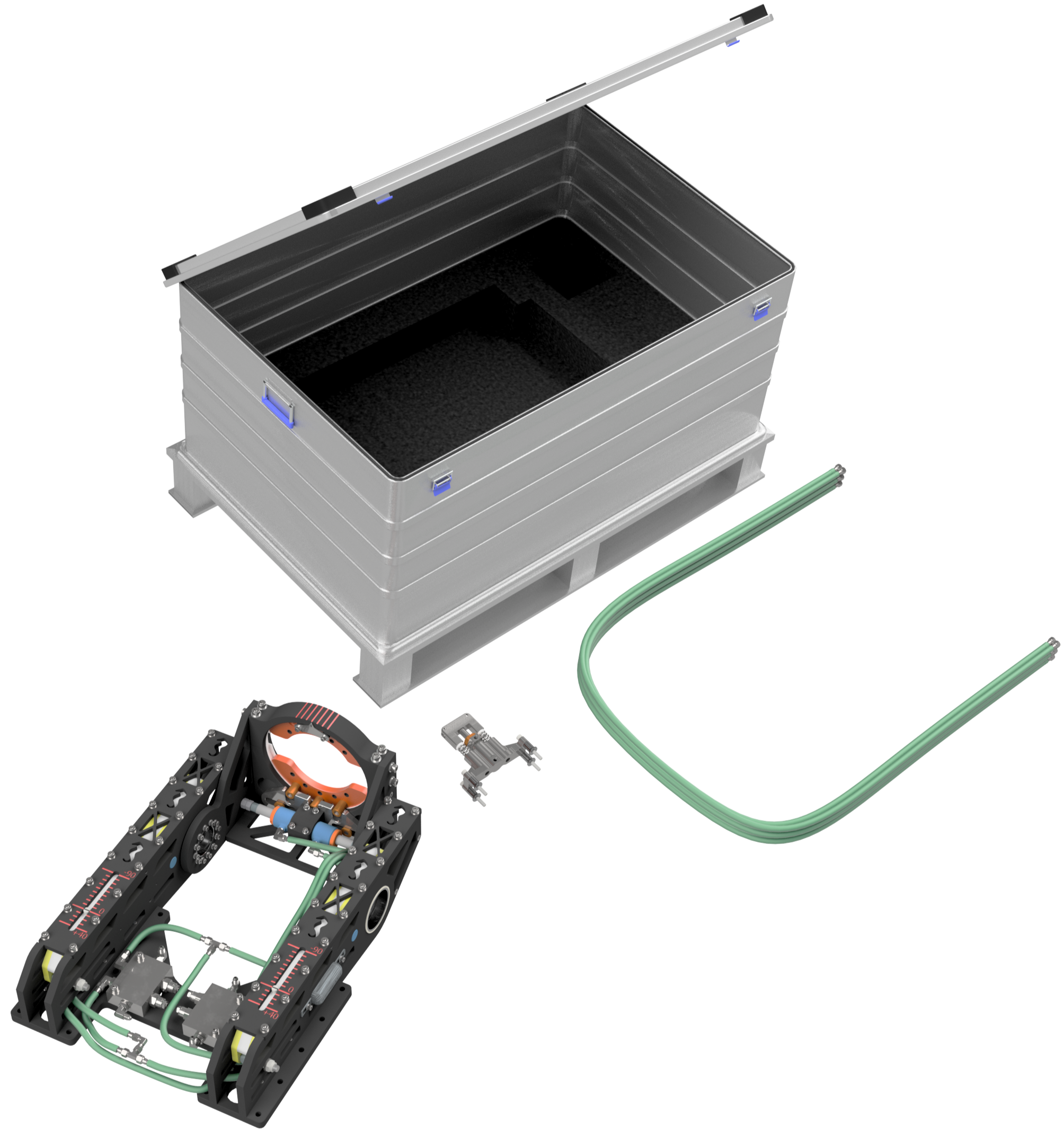

Complete kit for Flying Lead Orientation Tool (FLOT) with transport box.
Transport box measuring 1182x782x500mm comes with integrated pallet
for safe and easy handling.
The FLOT is designed for operation and positioning of Class 1-4 Torque
Tool (TT) onto any standard WROV. Allows tilting and rotation of TT to
ensure easy docking of TT into torque interface bucket. Tilting and rotation
by hydraulic cylinders connected directly to the ROV’s aux. hydraulic system
Stepless tilt feature adjustable between 40° up and 90° down.
Hydraulically operated, fail-safe, latch control actuator available to allow
locking of Blue Logic TT in Class 1-4 interface bucket during operation.
Article number for Latch Actuator is BB1935, included in kit.
Fabricated in hard anodized Aluminium with anodes for protection against
corrosion.
Max Tilt Torque: 650Nm
Interface Information - see drawing BB8835
Interface adapter for other Torque Tools available upon request.
