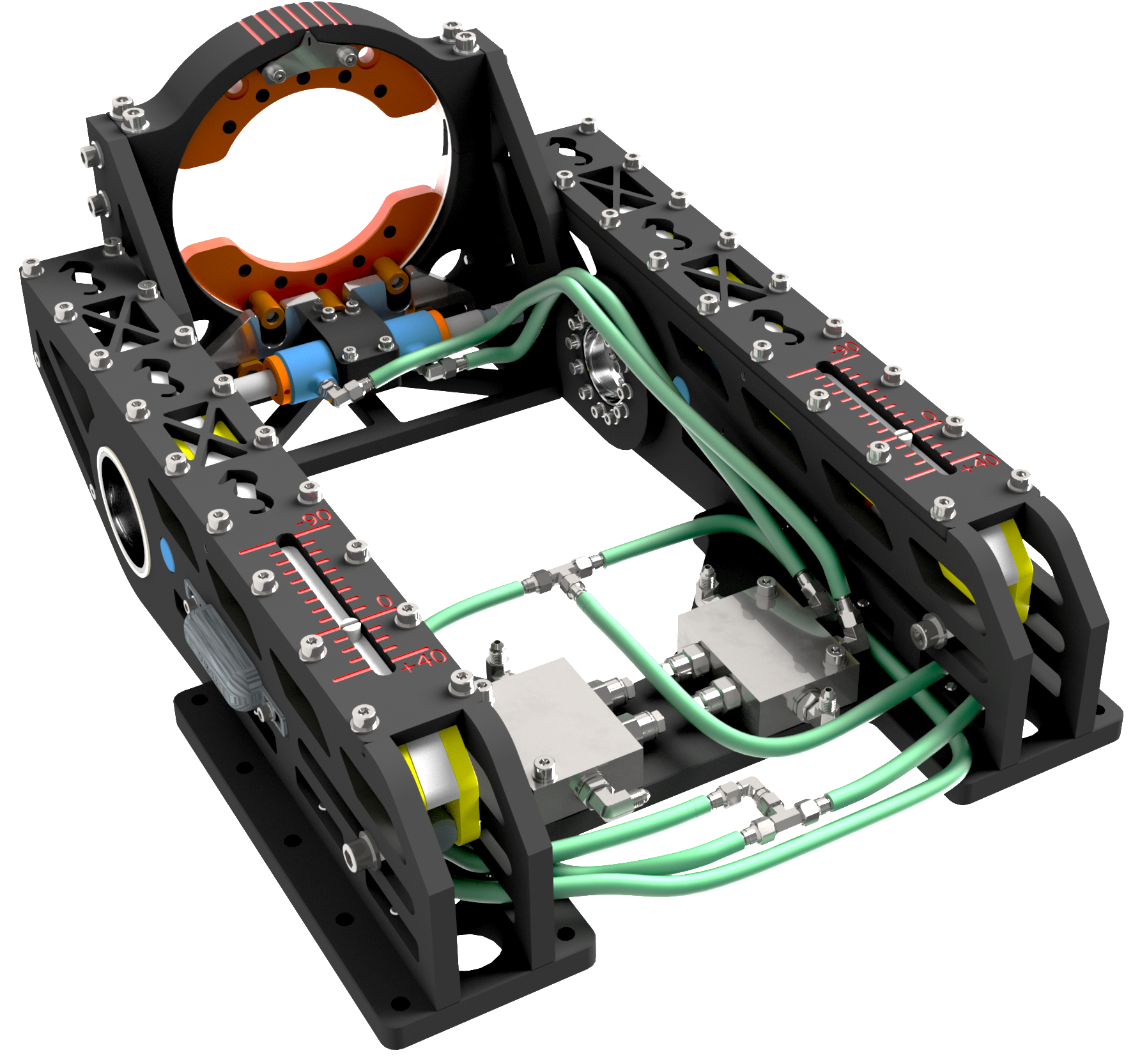

Flying Lead Orientation Tool (FLOT) for operation and positioning of
Class 1-4 Torque Tool (TT) onto any standard WROV. Allows tilting and
rotation of TT to ensure easy docking of TT into torque interface bucket.
Tilting and rotation by hydraulic cylinders connected directly to the ROV’s
aux. hydraulic system.
Stepless tilt feature adjustable between 40° up and 90° down.
Hydraulically operated, fail-safe, latch control actuator available to allow
locking of Blue Logic TT in Class 1-4 interface bucket during operation.
Article number for Latch Actuator is BB1935.
Fabricated in hard anodized Aluminium with anodes for protection against
corrosion.
Max Tilt Torque: 650Nm
Interface adapter for other Torque Tools available upon request.
