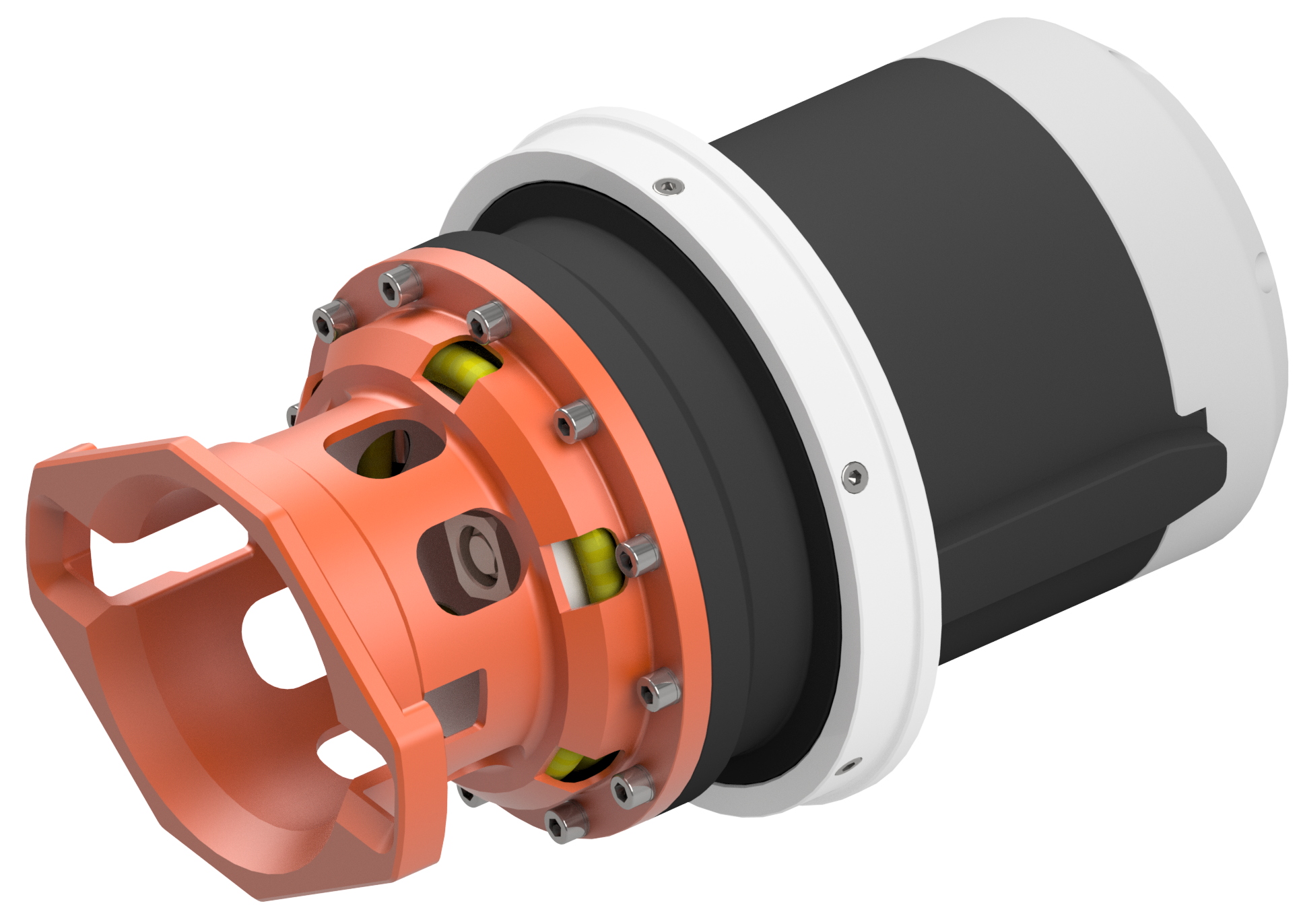

Aker Solutions Class 7 API 1992-2003 and Presence, Shorth Version
gearbox for Permanent use and installation subsea.
The gearbox is oil filled and pressure compensated using passive,
integrated compensator. All seawater exposed parts fabricated in Super
Duplex and Inconel 725, guide nose section in PEHD1000.
Gear Ratio 1:9,766
Other types of output interface available upon request.
Can be used on Long Cl. 7 interface with pancake spacer
Qualification:
Endurance test ref. 500442-TD-0009
Destructive test ref. 500442-TD-0010
600 endurance cycles using dynamic test jig and electronical torque tool
4000 cycles @ 1800 Nm, 1000 cycles @ 2700 Nm
Stripping and inspection of gearbox, replacement of bearing and gears
exposed to cyclic load testing
Please note after Service Stripping and re-assembly, the Gear Box shall be
FAT tested with signature cycles before delivery.
